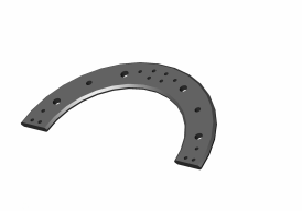

| 弧形导轨NSR22 | ||||||||
| 型號Code | 安裝尺寸 Dimensions(mm) | n° fixing | n° pin | |||||
| A | I | f | R1 | R2 | R3 | holes/360° | holes/360° | |
| NSR22M075 | 22.5° | 45° | 45° | 88 | 75 | 62 | 8 | 4 |
| NSR22M125 | 15° | 30° | 25° | 138 | 125 | 112 | 12 | 8 |
| NSR22M175 | 15° | 30° | 25° | 188 | 175 | 162 | 12 | 8 |

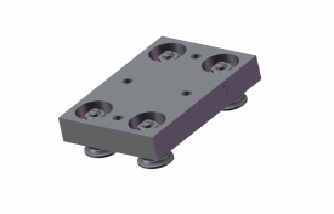

| 弧形导轨滑座 | |||||||
| 型號Code | 安裝尺寸 Dimensions(mm) | 建議組合 | |||||
| R | Ix | Is | Ir | Iy | De | Combinations | |
| 4R22M075NR22 | 75 | 40 | 14 | 15.6 | 43.3 | 22 | NSR22M075 |
| 4R22M 125NR22 | 125 | 40 | 16 | 17.6 | 43.3 | 22 | NSR22M 125 |
| 4R22M 175NR22 | 175 | 40 | 16.9 | 18.5 | 43.3 | 22 | NSR22M 175 |
| V型滚轮 | ||||||
| 型號Code | 偏心量Excenter | 動載荷Cw(N) | 徑向力Fr(N) | 軸向力Fa(N) | 扭矩（N.m) | 重 量（kg) |
| NR22 | 0 | 2900 | 1400 | 420 | 3 | 0.045 |
| NR22R | 0.8mm | 2900 | 1400 | 420 | 3 | 0.045 |
| 弧形导轨NSR22 | ||||||||
| 型號Code | 安裝尺寸 Dimensions(mm) | n° fixing | n° pin | |||||
| A | I | f | R1 | R2 | R3 | holes/360° | holes/360° | |
| NSR22M075 | 22.5° | 45° | 45° | 88 | 75 | 62 | 8 | 4 |
| NSR22M125 | 15° | 30° | 25° | 138 | 125 | 112 | 12 | 8 |
| NSR22M175 | 15° | 30° | 25° | 188 | 175 | 162 | 12 | 8 |
| 弧形导轨滑座 | |||||||
| 型號Code | 安裝尺寸 Dimensions(mm) | 建議組合 | |||||
| R | Ix | Is | Ir | Iy | De | Combinations | |
| 4R22M075NR22 | 75 | 40 | 14 | 15.6 | 43.3 | 22 | NSR22M075 |
| 4R22M 125NR22 | 125 | 40 | 16 | 17.6 | 43.3 | 22 | NSR22M 125 |
| 4R22M 175NR22 | 175 | 40 | 16.9 | 18.5 | 43.3 | 22 | NSR22M 175 |
| V型滚轮 | ||||||
| 型號Code | 偏心量Excenter | 動載荷Cw(N) | 徑向力Fr(N) | 軸向力Fa(N) | 扭矩（N.m) | 重 量（kg) |
| NR22 | 0 | 2900 | 1400 | 420 | 3 | 0.045 |
| NR22R | 0.8mm | 2900 | 1400 | 420 | 3 | 0.045 |
