| 弧形导轨NSR47 | ||||||||
| 型號Code | 安裝尺寸 Dimensions(mm) | n° fixing | n° pin | |||||
| A | I | f | R1 | R2 | R3 | holes/360° | holes/360° | |
| NSR47M400 | 9° | 18° | 18° | 438 | 400 | 362 | 20 | 8 |
| NSR47M500 | 9° | 18° | 18° | 538 | 500 | 462 | 20 | 8 |

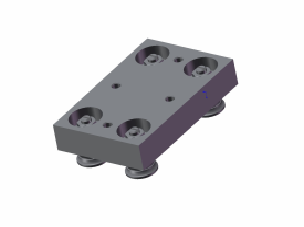

| 滚轮滑座 | |||||||
| 型號Code | 安裝尺寸 Dimensions(mm) | 建議組合 | |||||
| R | Ix | Is | Ir | Iy | De | Combinations | |
| 4R47M400NR52 | 400 | 110 | 46 | 49 | 116.8 | 52 | NSR47M400 |
| 4R47M500NR52 | 500 | 110 | 47.4 | 50.4 | 116.8 | 52 | NSR47M500 |
| V型滚轮 | ||||||
| 型號Code | 偏心量Excenter | 動載荷Cw(N) | 徑向力Fr(N) | 軸向力Fa(N) | 扭矩（N.m) | 重 量（kg) |
| NR52 | 0 | 11700 | 8500 | 3000 | 64 | 0.51 |
| NR52R | 1.5mm | 11700 | 8500 | 3000 | 64 | 0.51 |
| 弧形导轨NSR47 | ||||||||
| 型號Code | 安裝尺寸 Dimensions(mm) | n° fixing | n° pin | |||||
| A | I | f | R1 | R2 | R3 | holes/360° | holes/360° | |
| NSR47M400 | 9° | 18° | 18° | 438 | 400 | 362 | 20 | 8 |
| NSR47M500 | 9° | 18° | 18° | 538 | 500 | 462 | 20 | 8 |
| 滚轮滑座 | |||||||
| 型號Code | 安裝尺寸 Dimensions(mm) | 建議組合 | |||||
| R | Ix | Is | Ir | Iy | De | Combinations | |
| 4R47M400NR52 | 400 | 110 | 46 | 49 | 116.8 | 52 | NSR47M400 |
| 4R47M500NR52 | 500 | 110 | 47.4 | 50.4 | 116.8 | 52 | NSR47M500 |
| V型滚轮 | ||||||
| 型號Code | 偏心量Excenter | 動載荷Cw(N) | 徑向力Fr(N) | 軸向力Fa(N) | 扭矩（N.m) | 重 量（kg) |
| NR52 | 0 | 11700 | 8500 | 3000 | 64 | 0.51 |
| NR52R | 1.5mm | 11700 | 8500 | 3000 | 64 | 0.51 |
