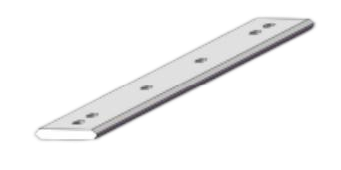

| V型导轨 | ||||
| 型 號Code | 材 料Material | 螺栓型號Bolt Size | ||
| L | E | |||
| NV90102 | 1000 | 950 | 42CrMo | M 12 8.8 級 |
| NV90202 | 2000 | 1950 | 42CrMo | M 12 8.8 級 |

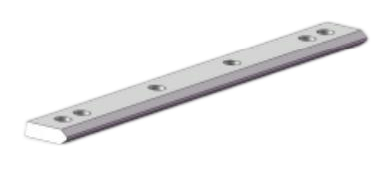

| V型导轨 | ||||
| 型 號Code | 材 料Material | 螺栓型號Bolt Size | ||
| L | E | |||
| NV90101 | 1000 | 950 | 42CrMo | M 12 8.8 級 |
| NV90201 | 2000 | 1950 | 42CrMo | M 12 8.8 級 |
| V型滚轮 | ||||||
| 型號Code | 偏心量Excenter | 動載荷Cw(N) | 徑向力Fr(N) | 軸向力Fa(N) | 扭矩（N.m) | 重 量（kg) |
| NY52 | 0 | 41000 | 11900 | 4800 | 80 | 0.6 |
| NY52R | 1mm | 41000 | 11900 | 4800 | 80 | 0.6 |
| V型滚轮 | ||||
| 型號Code | 動載荷Cw(N) | 徑向力Fr(N) | 軸向力Fa(N) | 重 量（kg) |
| NF52 | 41000 | 11900 | 4800 | 0.5 |
| V型导轨 | ||||
| 型 號Code | 材 料Material | 螺栓型號Bolt Size | ||
| L | E | |||
| NV90102 | 1000 | 950 | 42CrMo | M 12 8.8 級 |
| NV90202 | 2000 | 1950 | 42CrMo | M 12 8.8 級 |
| V型导轨 | ||||
| 型 號Code | 材 料Material | 螺栓型號Bolt Size | ||
| L | E | |||
| NV90101 | 1000 | 950 | 42CrMo | M 12 8.8 級 |
| NV90201 | 2000 | 1950 | 42CrMo | M 12 8.8 級 |
| V型滚轮 | ||||||
| 型號Code | 偏心量Excenter | 動載荷Cw(N) | 徑向力Fr(N) | 軸向力Fa(N) | 扭矩（N.m) | 重 量（kg) |
| NY52 | 0 | 41000 | 11900 | 4800 | 80 | 0.6 |
| NY52R | 1mm | 41000 | 11900 | 4800 | 80 | 0.6 |
| V型滚轮 | ||||
| 型號Code | 動載荷Cw(N) | 徑向力Fr(N) | 軸向力Fa(N) | 重 量（kg) |
| NF52 | 41000 | 11900 | 4800 | 0.5 |
