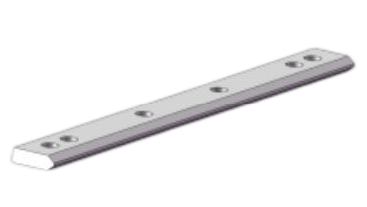

| V型导轨 | ||||
| 型 號Code | 材 料Material | 螺栓型號Bolt Size | ||
| L | E | |||
| NV120102 | 1000 | 950 | 42CrMo | M 16 8.8 級 |
| NV120202 | 2000 | 1950 | 42CrMo | M 16 8.8 級 |

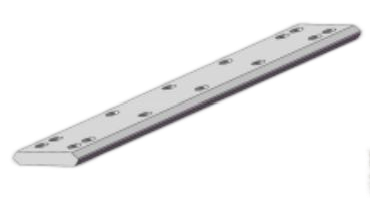

| V型导轨 | ||||
| 型 號Code | 材 料Material | 螺栓型號Bolt Size | ||
| L | E | |||
| NV120101 | 1000 | 950 | 42CrMo | M 16 8.8 級 |
| NV120201 | 2000 | 1950 | 42CrMo | M 16 8.8 級 |
| V型滚轮 | ||||||
| 型號Code | 偏心量Excenter | 動載荷Cw(N) | 徑向力Fr(N) | 軸向力Fa(N) | 扭矩（N.m) | 重 量（kg) |
| NY72 | 0 | 66000 | 30000 | 12300 | 300 | 1.6 |
| NY72R | 1mm | 66000 | 30000 | 12300 | 300 | 1.6 |
| V型滚轮 | ||||
| 型號Code | 動載荷Cw(N) | 徑向力Fr(N) | 軸向力Fa(N) | 重 量（kg) |
| NF72 | 66000 | 30000 | 12300 | 1.2 |
| V型导轨 | ||||
| 型 號Code | 材 料Material | 螺栓型號Bolt Size | ||
| L | E | |||
| NV120102 | 1000 | 950 | 42CrMo | M 16 8.8 級 |
| NV120202 | 2000 | 1950 | 42CrMo | M 16 8.8 級 |
| V型导轨 | ||||
| 型 號Code | 材 料Material | 螺栓型號Bolt Size | ||
| L | E | |||
| NV120101 | 1000 | 950 | 42CrMo | M 16 8.8 級 |
| NV120201 | 2000 | 1950 | 42CrMo | M 16 8.8 級 |
| V型滚轮 | ||||||
| 型號Code | 偏心量Excenter | 動載荷Cw(N) | 徑向力Fr(N) | 軸向力Fa(N) | 扭矩（N.m) | 重 量（kg) |
| NY72 | 0 | 66000 | 30000 | 12300 | 300 | 1.6 |
| NY72R | 1mm | 66000 | 30000 | 12300 | 300 | 1.6 |
| V型滚轮 | ||||
| 型號Code | 動載荷Cw(N) | 徑向力Fr(N) | 軸向力Fa(N) | 重 量（kg) |
| NF72 | 66000 | 30000 | 12300 | 1.2 |
